Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

Product Code: 3564
Category:Water strainer & nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

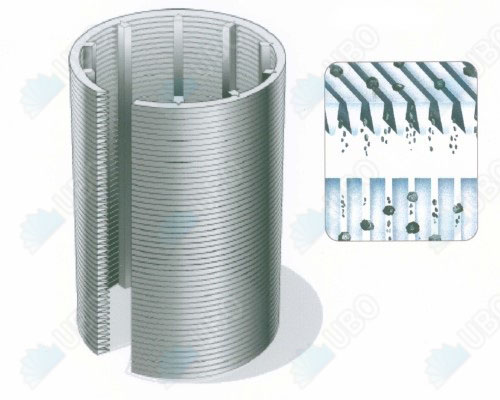

Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap is made with inverted wrapped V wire (mostly stainless steel ) welded to the supporting ss bar or rod.The welded stainless steel oil well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire). Well screens have a structure and high opening area, as well as accurate slot dimension. In the same time, oil well screen have heat-resisting, anti-corrosive, good machine capability, long life span, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

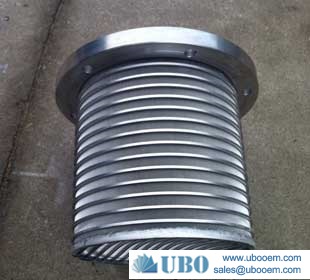

Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

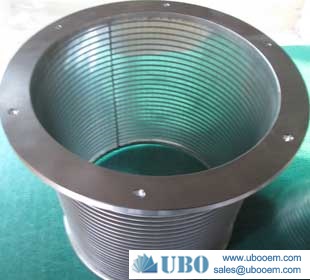

Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

Feature of Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

-- High mechanical strength can bear large pressure drop
-- Equal slots for filtering can form equally distributed filter cake
-- The wedge type slot can improve back flushing and regeration performance
-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.

Application of Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap


Mine Sieving Mesh Usage: Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

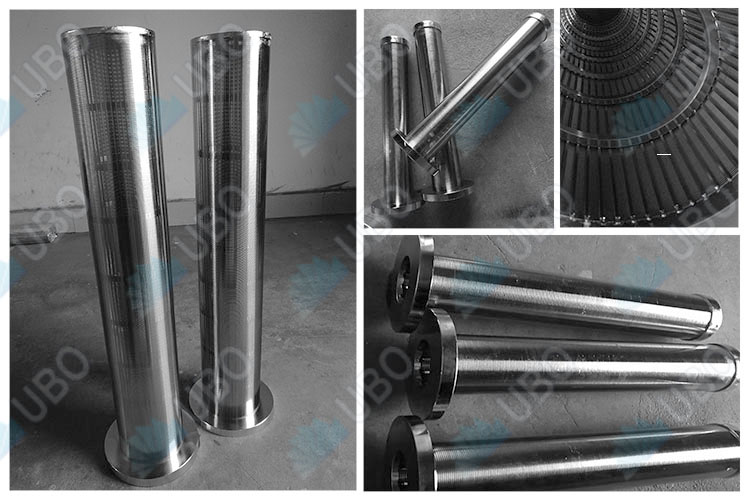

Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

Specification of the Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

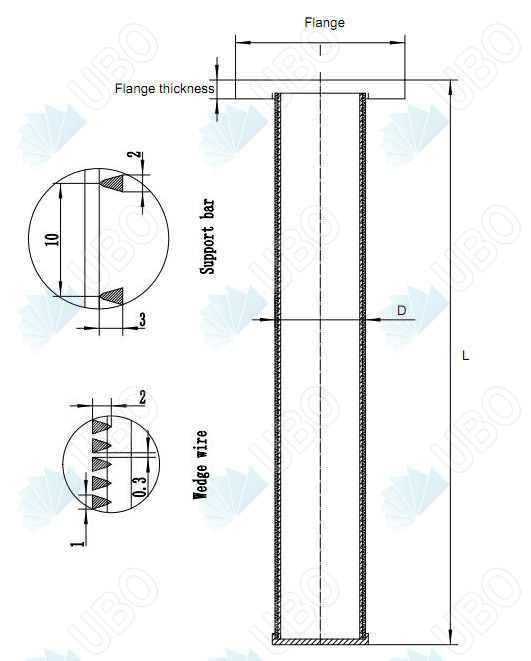

Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

25mm-2000mm

ID Range

19mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

3*5

3*5

Connection

Flange and thread

End Type

Closed plate

Note

Customized According To Special Requirement

Production And Sales of Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap


Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap
