Stainless steel v wire screen nozzle filter for filtration tank

Product Code: 3362
Category:Water strainer & nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:water filtration,liquid filtration,industry filtration

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless steel v wire screen nozzle filter for filtration tank


The Stainless steel v wire screen nozzle filter for filtration tank are used in liquid/solid or gas/solid separation. The wedge wire screen design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow thus almost eliminating the channeling, wall effects or dead zones.
Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters,ion exchange processes Sand filters, Activated carbon processes . Nozzles can also be used as collectors at the bottom of the vessels by installing a number of nozzles uniformly across a tray plate. The combination of high open area and a non-plugging slot design makes this nozzle/collector application popular.

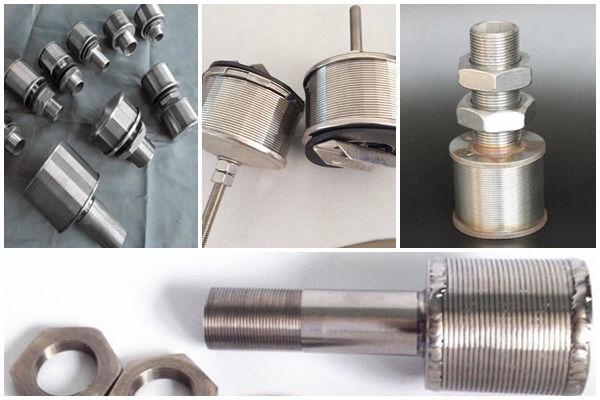

Stainless steel v wire screen nozzle filter for filtration tankStainless steel v wire screen nozzle filter for filtration tank

Features of Stainless steel v wire screen nozzle filter for filtration tank

1. High mechanical strength, can withstand greater pressure
2. Uniform aperture, form uniform filter cake, beneficial backwash regeneration
3. Wedge-shaped filter gap, improve backwash regeneration capacity
4. High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
5. Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.

Advantage of Stainless steel v wire screen nozzle filter for filtration tank

1. Excellent roundness
2. Very good slot width precision
3. High mechanical load capacity
4. No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
5. Automated welding process for high-precision manufacturing
6. Perfectly adjusted screen basket profiles
7. Available for all screens
8. Surface finishing as required

Application of Stainless steel v wire screen nozzle filter for filtration tank

The Stainless steel v wire screen nozzle filter for filtration tank can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. It can be widely used in in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry. Also it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Specification of the Stainless steel v wire screen nozzle filter for filtration tank

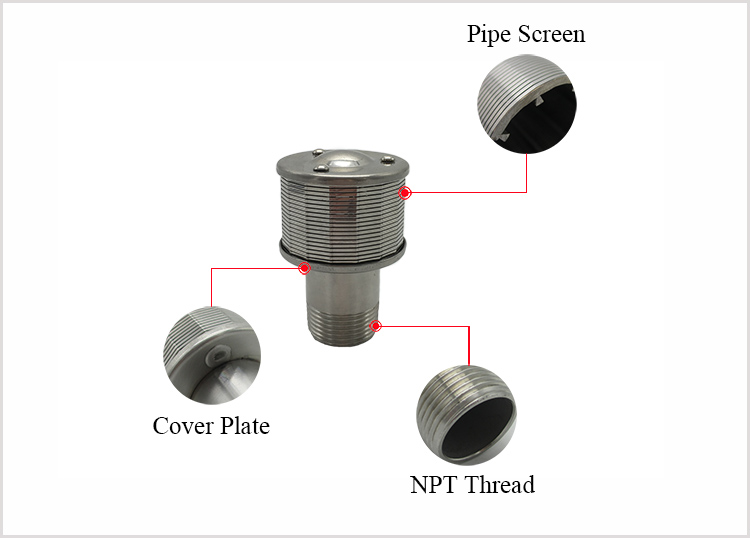

Stainless steel screen tube filter nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M, NPT, G, PT, Z,

request



SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

All the above size are the normal size. Customized size is possible.

UBO could help to design according to the application and requirement.

The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3.Thread, gasket, nut according to requirement

Production And Sales of Stainless steel v wire screen nozzle filter for filtration tank


Stainless steel v wire screen nozzle filter for filtration tank
