Stainless steel slotted wedge wire screen tube for industry filtration

Product Code: 3619
Category:Wedge wire Screen cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of Stainless steel slotted wedge wire screen tube for industry filtration


Stainless steel slotted wedge wire screen tube are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Stainless steel slotted wedge wire screen tube have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

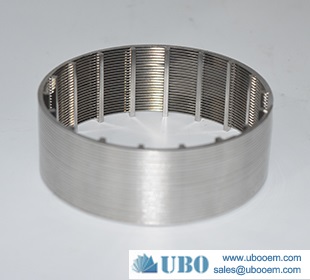

Stainless steel slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube for industry filtration

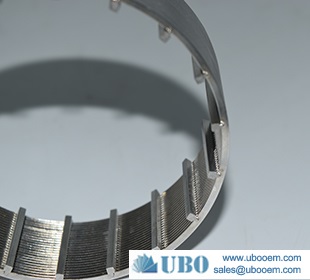

Stainless steel slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube for industry filtration

Application of Stainless steel slotted wedge wire screen tube for industry filtration


The v wire wedge wire screen pipe are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.



Feature of Stainless steel slotted wedge wire screen tube for industry filtration


A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Stainless steel slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube for industry filtration

Stainless steel slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube for industry filtration

Specification of the Stainless steel slotted wedge wire screen tube for industry filtration




Stainless steel slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube for industry filtration

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc

Note

Customized According To Requirement
