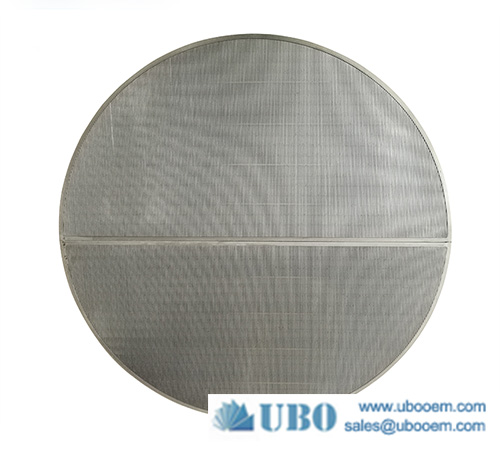

Stainless Steel V Slot lauter tun Screens for beer filter screen

Product Code: 3438
Category:Sieve plate screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:sieve bend screen
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless Steel V Slot lauter tun Screens for beer filter screen


Stainless Steel V Slot lauter tun Screens for beer filter screen consist of shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

Stainless Steel V Slot lauter tun Screens for beer filter screenStainless Steel V Slot lauter tun Screens for beer filter screenStainless Steel V Slot lauter tun Screens for beer filter screen

Advantage of Stainless Steel V Slot lauter tun Screens for beer filter screen

1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits

Uses of Stainless Steel V Slot lauter tun Screens for beer filter screen

• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations.

Stainless Steel V Slot lauter tun Screens for beer filter screen

Specification of the Stainless Steel V Slot lauter tun Screens for beer filter screen


Stainless Steel V Slot lauter tun Screens for beer filter screen

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29, 30, 35, 37, 40, 45, 47, 59, 63, 74, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

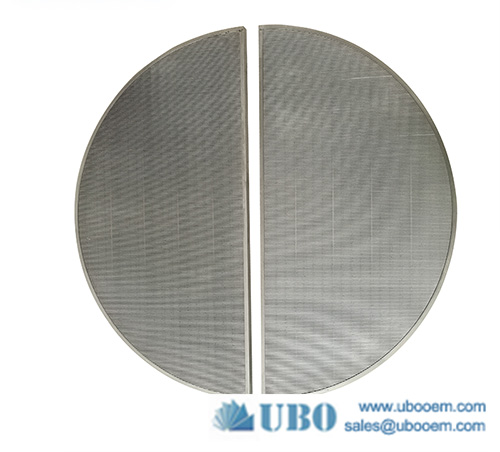

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

Production And Sales of Stainless Steel V Slot lauter tun Screens for beer filter screen


Stainless Steel V Slot lauter tun Screens for beer filter screen
