Stainless Steel 304 Water Screen Filter Nozzle

Product Code: 3398
Category:Water strainer & nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless Steel 304 Water Screen Filter Nozzle


 The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filtration of water petrol resin and other medium. Also it can be used in the water treatment, water softening, conversion of sea water into fresh water, the filter of food chemistry.

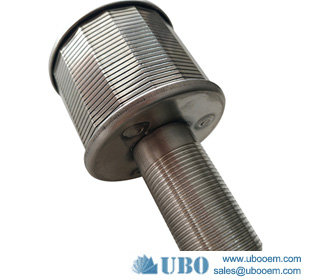

Stainless Steel 304 Water Screen Filter NozzleStainless Steel 304 Water Screen Filter Nozzle

Application for Stainless Steel 304 Water Screen Filter Nozzle:

Widely used inwater softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

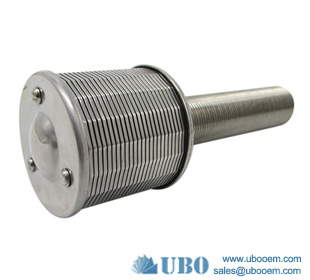

Stainless Steel 304 Water Screen Filter NozzleStainless Steel 304 Water Screen Filter Nozzle

Advantage for Stainless Steel 304 Water Screen Filter Nozzle:

•16000 square meter of two factories total area
•9 years exporting experience
•21 years production experience
•8 professional R&D
•1 sample can be sent

Product Information for Stainless Steel 304 Water Screen Filter Nozzle:

1.Made of stainless steel 304.
2.Connection: Adjustable fitting,split eyelet.
3.Wide range of spray angle and thread size selected.
4.Flow rate at 3 Bars pressure: from 0.38L/min to 183 L/min.
5.Working pressure: from 0.5 Bar to dozens of Bar,perfect performance under 3 Bars.
6.This model can produce the uniform distribution and the medium to large droplet.
7.This nozzle is ideal for installation in a total coverage of the region.

Specification of the Stainless Steel 304 Water Screen Filter Nozzle


Stainless Steel 304 Water Screen Filter Nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement
