SS wedge wire screen cylinders for wastewater treatment

Product Code: 3556
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wire wedged screens pipes
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

Email to Us Start Order


Email:sales@ubooem.com

Description of SS wedge wire screen cylinders for wastewater treatment

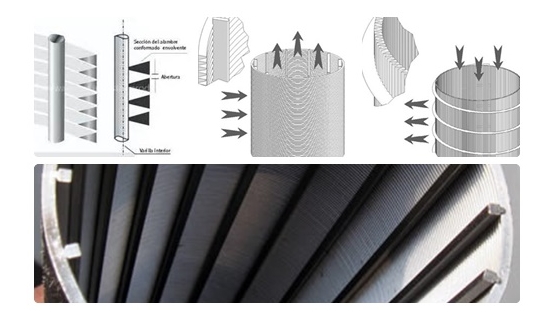

SS wedge wire screen cylinders is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. It has a smooth surface, resistant to clogging and a greater structural strength.

Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.



Features of ss wedge wire screen cylinders



1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

2) V type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.



Applications of ss wedge wire screen cylinders



-- Architecture & Construction

-- Food & Beverage Screens

-- Mineral & Aggregate Processing

-- OEM Screen Components

-- Pulp & Paper Screens

-- Refining & Petrochemical

-- Water Process & Fluid Treatment

-- Water Well

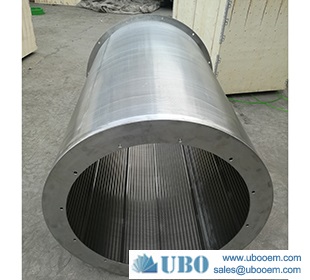

SS wedge wire screen cylinders

Specification of the SS wedge wire screen cylinders for wastewater treatment


1) Material: SS304,304L,316,316L,galvanized iron wire.

2) Slot size: 0.25-10mm

3) Wedge wire width: 1-3.7mm

4) Out diameter: 25-600mm

5) Connect way: Welded

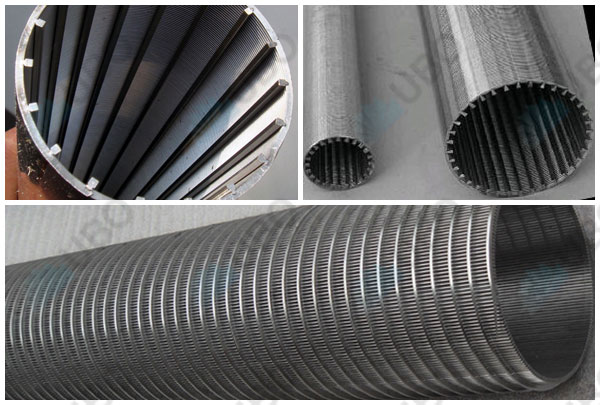

6) stainless steel Wedge wire screen pipe detailed picture

size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

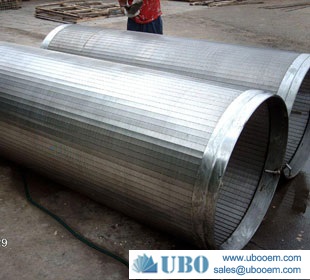

wire wedged screens pipes

Production And Sales of SS wedge wire screen cylinders for wastewater treatment


SS wedge wire screen cylinders
