SS water strainer filter screen nozzles for mineral water plant

Product Code: 3374
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of SS water strainer filter screen nozzles for mineral water plant


SS water strainer filter screen nozzles for mineral water plant are manufactured in accordance to customer flow requirements in almost any alloy. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide rang of water treatment and other industrial applications.



Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters. Strainers can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.The combination of high open area and a non-plugging slot design makes this nozzle /collector application pupilar.

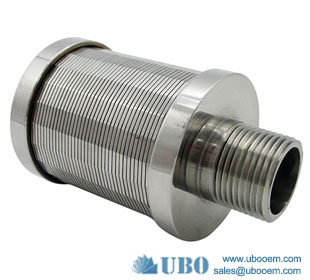

SS water strainer filter screen nozzles for mineral water plantSS water strainer filter screen nozzles for mineral water plant



Advantages of SS water strainer filter screen nozzles for mineral water plant



1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

SS water strainer filter screen nozzles for mineral water plant



Application of SS water strainer filter screen nozzles for mineral water plant



SS water strainer filter screen nozzles for mineral water plant can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. It can be widely used in in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry. Also it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

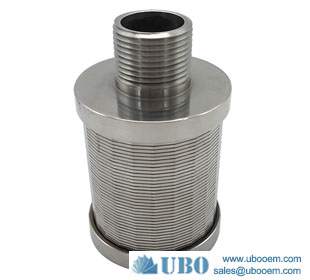

SS water strainer filter screen nozzles for mineral water plantSS water strainer filter screen nozzles for mineral water plant

Specification of the SS water strainer filter screen nozzles for mineral water plant


stainless steel slimline nozzle internal filters

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

Production And Sales of SS water strainer filter screen nozzles for mineral water plant


SS water strainer filter screen nozzles for mineral water plant
