SS flat wedge v wire screen panel used for iron ore

Product Code: 3600
Category:Sieve plate screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of SS flat wedge v wire screen panel used for iron ore

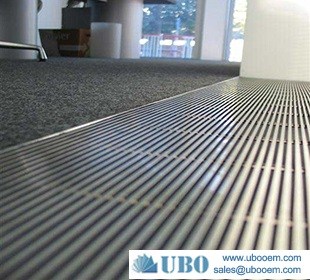

SS flat wedge v wire screen panel is manufactured by flat welded screen in panel.
SS flat wedge v wire screen panel offer a perfectly flat and smooth surface with rectangular openings.

SS flat wedge v wire screen panels are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Flat panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

SS flat wedge v wire screen panel used for iron ore

SS flat wedge v wire screen panel used for iron ore

Application of SS flat wedge v wire screen panel used for iron ore

The flat panel screens are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

Features of SS flat wedge v wire screen panel used for iron ore

SS flat wedge v wire screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

SS flat wedge v wire screen panel used for iron ore

SS flat wedge v wire screen panel used for iron ore

Specification of the SS flat wedge v wire screen panel used for iron ore


Johnson wedge wire flat panel screens

SS flat wedge v wire screen panel
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Width:
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of SS flat wedge v wire screen panel used for iron ore


SS flat wedge v wire screen panel used for iron ore
