Pressure Vessel Internals for water treatment

Product Code: 3641
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Pressure Vessel Internals for water treatment

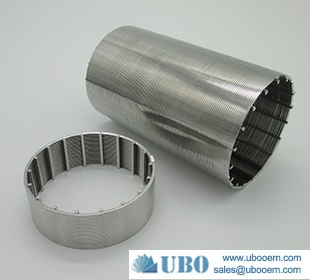

Stainless steel cylindrical wedge wire screens, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. The stainless steel cylindrical wedge wire screen is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Applications for Pressure Vessel Internals for water treatment:

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features for Pressure Vessel Internals for water treatment:

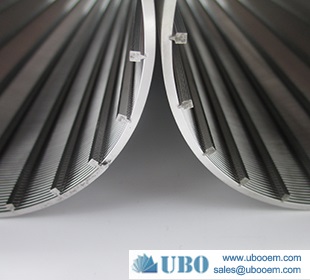

  The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.


Specification of the Pressure Vessel Internals for water treatment



Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: Other specifications available as per request
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length: up to 6 meters.
Diameter: from 25mm to 1200mm.
End connection: Plain beveled ends, flanged or threaded couplings


Production And Sales of Pressure Vessel Internals for water treatment


Package: in wood case

Delivery: 10-20 days
