NPT Male/Female Water Treatment Nozzle Filter

Product Code: 3359
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:Filter nozzle
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Email:sales@ubooem.com

Description of NPT Male/Female Water Treatment Nozzle Filter


NPT Male/Female Water Treatment Nozzle Filter is an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.
UBO manufactures filter nozzles using a variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes UBO nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.
If needed, YOUBIOU (UBO) can also custom manufacture nozzles to your exact specifications, including assembled nozzle.

NPT Male/Female Water Treatment Nozzle Filter

Advantages of the NPT Male/Female Water Treatment Nozzle Filter

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Feature of the NPT Male/Female Water Treatment Nozzle Filter

1. We use wedge wire sahped profile in order to make the slot v-shaped.It can stop the impurities very well.
2. The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
3. After work for a period of time, the filter can be back flush.It can use for many times.
4. Filtering direction from outside to inside (FOTI)

Specification of the NPT Male/Female Water Treatment Nozzle Filter


stainless steel filter screen nozzles

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

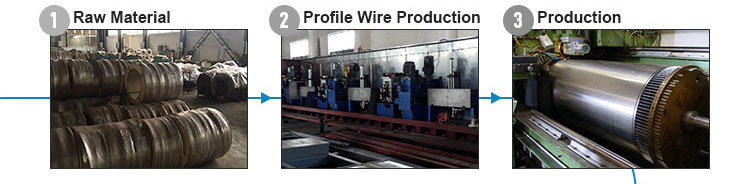

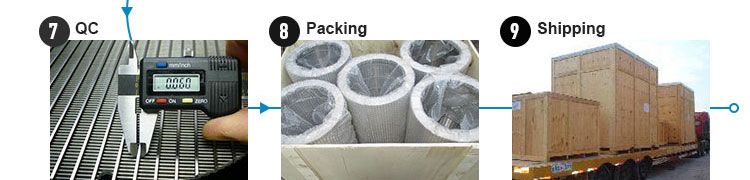

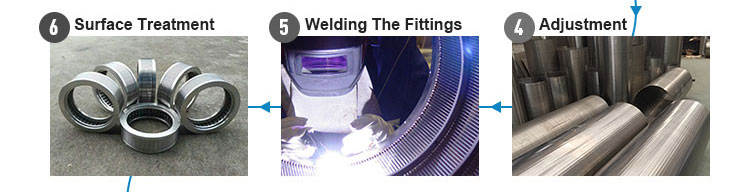

Production And Sales of NPT Male/Female Water Treatment Nozzle Filter


NPT Male/Female Water Treatment Nozzle FilterNPT Male/Female Water Treatment Nozzle FilterNPT Male/Female Water Treatment Nozzle FilterNPT Male/Female Water Treatment Nozzle FilterNPT Male/Female Water Treatment Nozzle Filter
