How to brew the high quality beer or wine for lauter tun screen

Product Code: 3521
Category:Sieve Bend screen
Material: perforated plate;stainless steel 304、316L 316Ti
Properties: wedge wire screen
Application:petroleum industry,chemical industry,water,deep well pump,plastics,food,architacture...

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of How to brew the high quality beer or wine for lauter tun screen


Description of Screen Support Grids


Screen support grids are a flat screen panel that provides uniform flow collection which is essential in many applications.

This is particularly important when screens are used to reserve expensive ion exchange resins.
Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction,precise open area, and are virtually non-clogging.

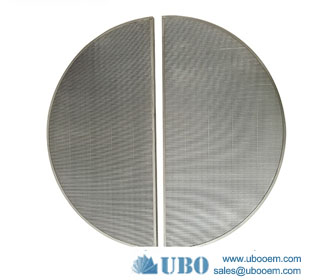

For larger vessel diameters Sanya screen support grids are fabricated in segments to allow installation through a vessel man-way.

Screen Support Grids

Benefits of Screen Support Grids

A non plugging surface; Self supporting structure; Accurate separation; High open area; Durable

Applications of Screen Support Grids

Molecular sieve; Catalyst bed support; Ion exchange; Sand filters; False bottoms ; Arrangement & Installation.

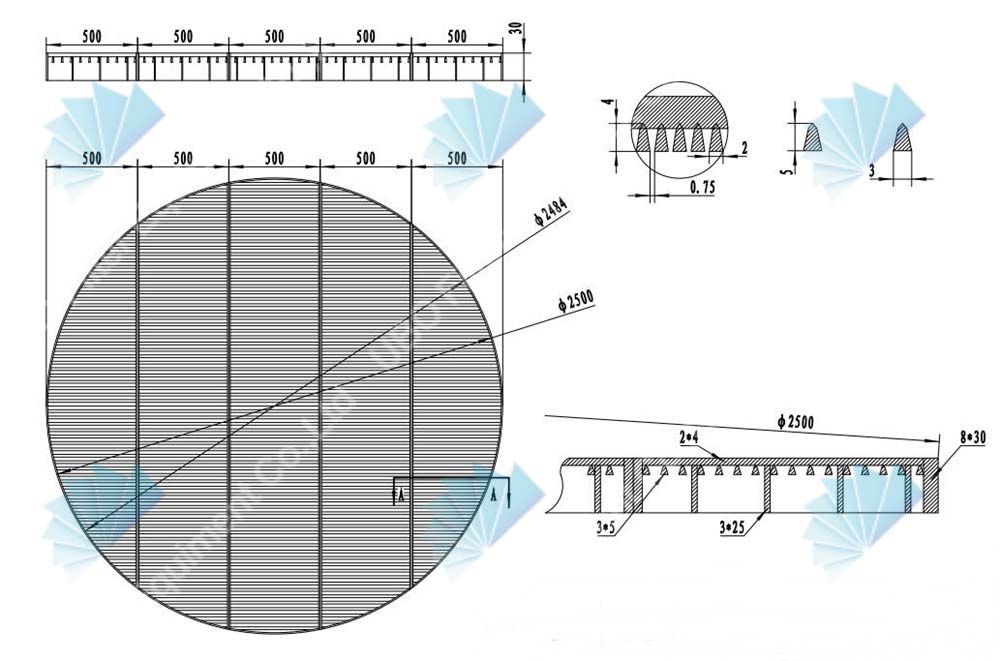

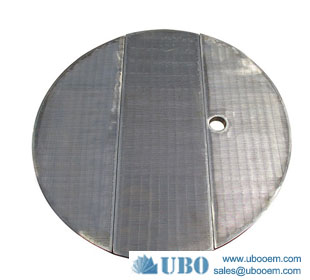

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.

The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.

Screen Support Grids

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the How to brew the high quality beer or wine for lauter tun screen


Specification of the Screen Support Grids


Screen Support Grids



Material low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm) 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.

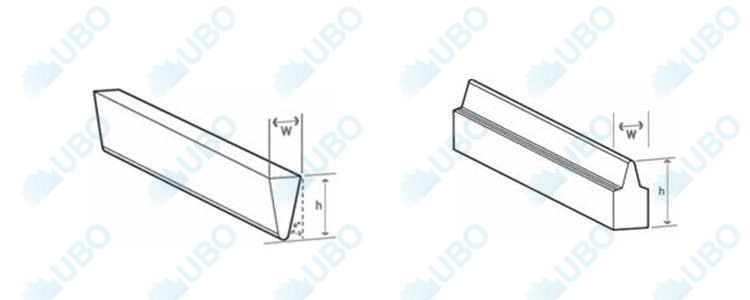

Profile Wire  #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod 1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Steel Flat Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame Iron Frame, Steel Frame, or Nothing

Production And Sales of How to brew the high quality beer or wine for lauter tun screen
