Filter Nozzle

Product Code: 3155
Category:Water strainer & nozzle
Material:Stainless Steel
Properties:wedge wire screen
Application:Filtration,water treatment,liquid filteration

Email to US Start Order


Author: Maria
Email:sales@ubooem.com

Description of Filter Nozzle


Filter nozzle as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.

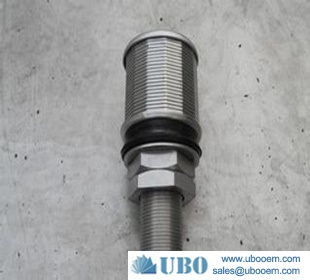

Filter Nozzle

Advantages of Filter Nozzle

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of Filter Nozzle

water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin trap.

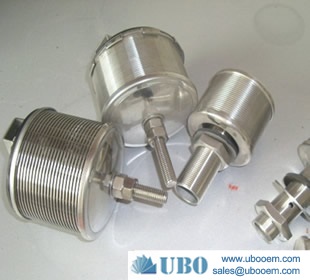

Filter Nozzle

Specification of the Filter Nozzle


No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

10

SRD 110

110

101

24

FOTI/FITO

11

SRD120

120

111

24

FOTI/FITO

Filter Nozzle
