Continuous slot wire wrapped water well screen supplier ,filter element,polymeric filter,filter strainer,sinter filter,wedge wire screen

Continuous slot wire wrapped water well screen supplier

Product Code: 3120
Category:Sieve plate screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Continuous slot wire wrapped water well screen supplier


Continuous slot wire wrapped water well screen supplier are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

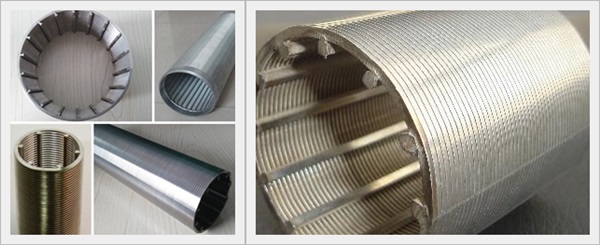

Continuous slot wire wrapped water well screen supplier

Advantage of Continuous slot wire wrapped water well screen supplier

High strength
High hardness
Abrasion resistant
Corrosion resistant
Uniform aperture
Good transfusion
Easy to clean

Application of Continuous slot wire wrapped water well screen supplier

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Specification of the Continuous slot wire wrapped water well screen supplier

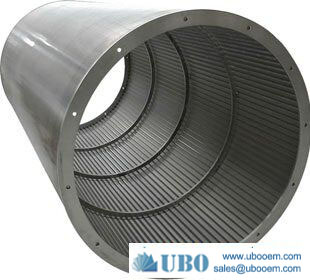

Continuous slot wire wrapped water well screen supplier

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Continuous slot wire wrapped water well screen supplier

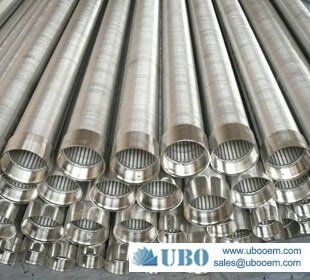

Continuous slot wire wrapped water well screen supplier
