Bridge Slot Screen

Product Code: 1826
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Email:sales@ubooem.com

Description of Bridge Slot Screen


   The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction

Application for Bridge Slot Screen:

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.

Feature for Bridge Slot Screen:

1.The V-shape section plane of Wedge wire screen pipe (Wedge Wire Screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. The consecutive slot of Wedge wire screen pipe (Wedge Wire Screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.
3. Wire and support rods are all-welded, which makes the Wedge wire screen pipe (Wedge Wire Screens) more robust and longer life.
4. The longitudinal support rods and the continuous slot make the Wedge wire screen pipe (Wedge Wire Screens) have more excellent pressure-resistant performance.
5. Specifications and end connections of Wedge wire screen pipe (Wedge Wire Screens) can be fabricated according to customers’ requirements.

Construction for Bridge Slot Screen:

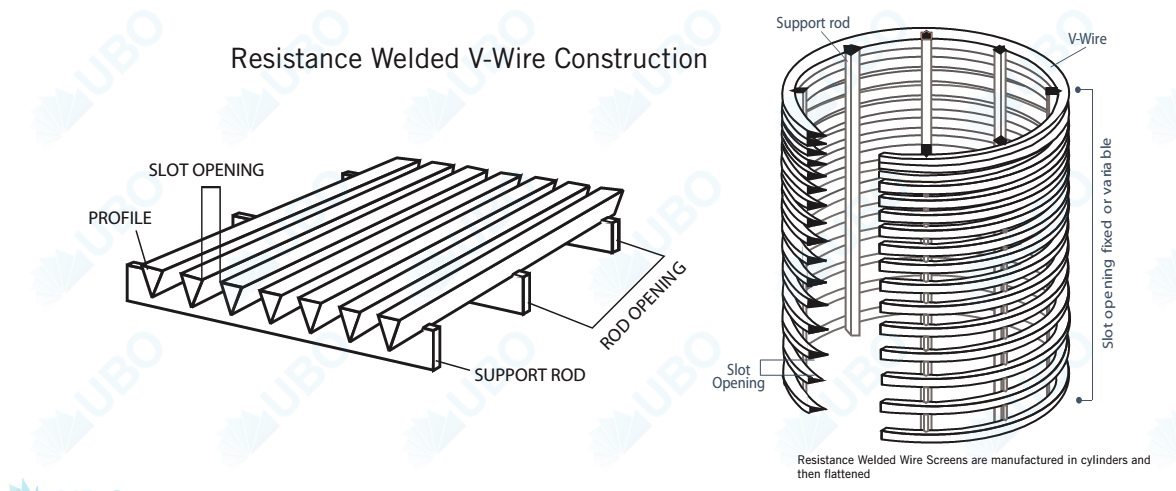

1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the strainer have bigger filter area and non obstructive, avoid the high concentration of impurities.
3.After work for a period of time, the strainer can be back flush.It can use for many times.
