| Category: | Lauter Tun Screen |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request |
| Properties: | false bottom |
| Application: | solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater |

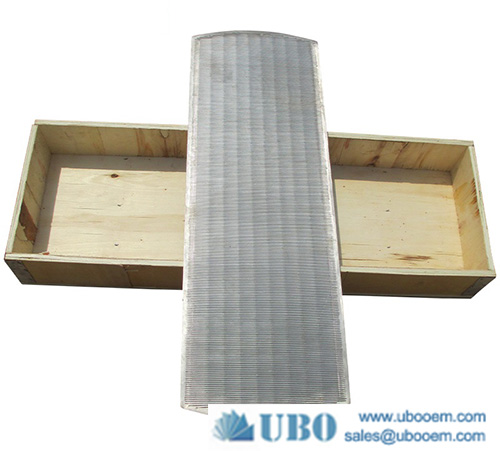

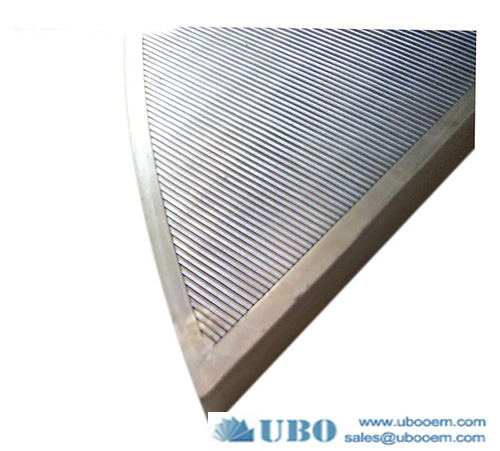

Brewing Equipment Home Brew Mash tun lauter tun false bottom consist of shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
1) Continuous slot screens, stronger and more durable
2) More open area, very precise openings
3) Virtually non-clogging and reduce media abrasion
4) Easier installation and long-term operating and cost benefits
• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations.
|
|
|
|
Normal Name |
Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc. |
|
Diameter Range (MM) |
200mm To 2500mm. Diameter Customized |
|
Normal Diameter (MM) |
29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc |
|
Normal Slot (MM) |
0.7mm, 0.75mm, 0.8mm, 1.0mm, customized |
|
Normal Thickness (MM) |
8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.
|
|
Sections & shape |
1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized |
|
Wedge wire (MM) |
2x4MM Wedge Wire, 3x5MM Wedge Wire |
|
Support Rod (MM) |
3x5MM V shaped Support Rod, 3x5mm Square Support Rod |
|
Strengthen Rod (MM) |
Thickness and Height according to the diameter and screen thickness |
|
Note |
Usually customized. |
