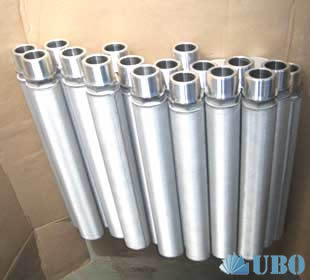

cylinder air filter

Product Code: 1612
Category:Cylinder filter
Material:Stainless Steel wire mesh
Properties:Stainless Steel Filter
Application:Filtration air Filter,Hydraulic Filter

Email to US Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of cylinder air filter


cylinder air filter   is Made of sintered wire mesh laminates, this kind of filter element is comparatively simple in processing compared with pleated filter elements. Normally comes in the form of pipes or cylinder filter. Processes involved include shearing of filter media, welding to form a cylinder, machining of the caps and other parts, soldering of the parts to the cylinder, washing, testing, etc.

cylinder air filter   Application: For air filter, hydraulic filter and oil filter.

Filter Media-Sintered Wire Cloth Laminated Sheets

cylinder air filter Benefits of Using:
Sintered wire cloth is made by vacuum sintering, offers high strength without any support layer;
No possibility of media migration occurring in using;
A wide operating temperature range;
Strongly corrosion resistant;
E asy to clean and offer long service life.

cylinder air filter Available filtration rating (μm): 2, 5, 10, 20, 40, 75, 100, 150, 200
Sizes: Any outline size is available at customer's requirement.

Announcement:


If you can envision it,We can supply it. TEL:0086-0311-83289301 E-mail:sales@ubooem.com

·          Ubo will do everything possible to provide exact and full product information based on metal mesh for your information.

·          In order to give customer a clear image of the product,Ubo has taken some pictures, customer can dowmload for reference but using our picture for business is forbidden.

·          Due to technique and other factors,product image might be slight different to the products itself,in case everything will follow the products.

·          Ubo appreciate any suggestion on our product information or picture or anything else.

Specification of the cylinder air filter


Nominal Rating
(μ)

Protective layer

Control layer

Dispersion layer

Reinforcing layer

Reinforcing layer

Thickness
(mm)

Average Air Permeability
(L/min/cm2)

Bubble Point Pressure
(mmH2O)

Weight
(kg/m2)

Porosity

1

200

400x3000

200

12x64

64x12

1.7

1.81

360600

5-LAYERS
8.4

6-LAYERS
14.4

About 40%

2

100

325x2300

100

12x64

64x12

1.7

2.35

300590

5

100

200x1400

100

12x64

64x12

1.7

2.42

260550

10

100

165x1400

100

12x64

64x12

1.7

3.00

220500

15

100

165x1200

100

12x64

64x12

1.7

3.41

200480

20

100

165x800

100

12x64

64x12

1.7

4.50

170450

25

100

165x600

100

12x64

64x12

1.7

6.12

150410

30

100

400

100

12x64

64x12

1.7

6.86

120390

40

100

325

100

12x64

64x12

1.7

7.10

100350

50

100

250

100

12x64

64x12

1.7

8.41

90300

75

100

200

100

12x64

64x12

1.7

8.70

80250

100

100

150

100

12x64

64x12

1.7

9.10

70190

150

50+100+50+30+30+100+50

2.0

25.00

50150

200

40+80+40+20+40+80+40

2.0

26.00



Production And Sales of cylinder air filter


ylinder air filter Benefits of Using:
Sintered wire cloth is made by vacuum sintering, offers high strength without any support layer;
No possibility of media migration occurring in using;
A wide operating temperature range;
Strongly corrosion resistant;
E asy to clean and offer long service life.
